Lazerlite Polycarbonate Sheet

PREMIUM POLYCARBONATE SHEETS

Lazerlite Lazerlite

Lazerlite Premium Polycarbonate sheets have high impact strength, fire retardant, highly durable, light weight, weather resistant, corrosion resistant, highly stable, sound proof and light transmitting power. The compact variant is also easy to fabricate and customize. It comes with a 10 years* warranty which is available upon request.

Lazerlite Polycarbonate Sheet is a polished surface, UV coated, transparent polycarbonate.

This lightweight thermo formable sheet is also easy to fabricate and decorate.

DESIGNS:

Solid, Diamond, Embossed, Rain Drop, Multi Wall, Corrugation Sheet

ADVANTAGE

  • High Impact
    Strength
  • Fire Retardant
  • Durable
  • Light Weight
  • Weather
    Resistant
  • Flexible
  • Corrosion
    Resistant
  • Light
    Transmission
    up to 86%
  • Sound Proof

Designs

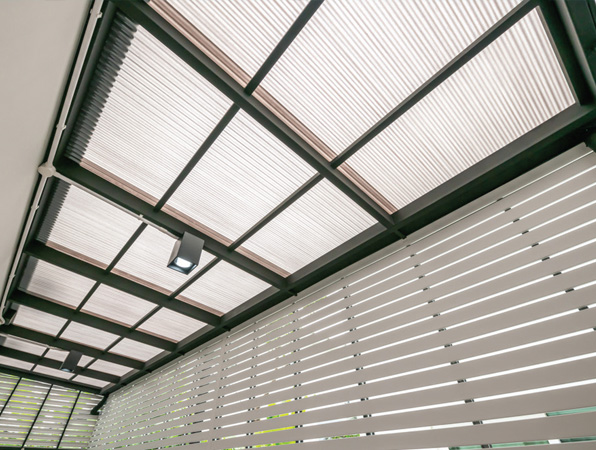

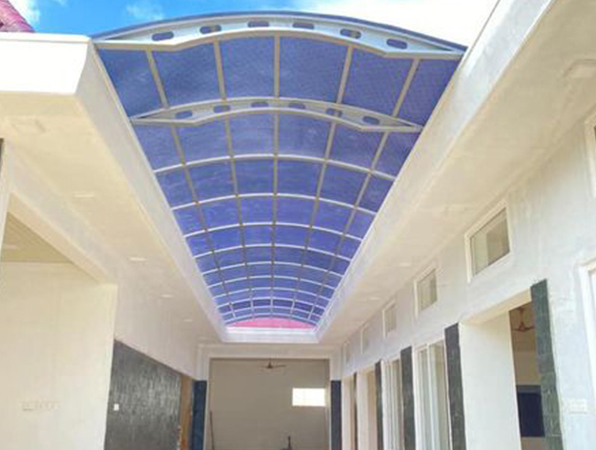

Solid

Polished, UV stabilized and transparent polycarbonate product with excellent impact strength, superior dimensional strength, high temperature resistance and great clarity. The compact variant is also easy to fabricate and customize. It comes with a 5 year warranty which is available upon request.

Lazerlite-uv Polycarbonate Sheet is a polished surface, UV stabilized, transparent polycarbonate product. It features outstanding impact strength, superior dimensional stability, high temperature resistance, and high clarity.

Typical Application
  • Industrial glazing
  • Machine guards
  • Structural parts
  • Thermoformed and fabricated components
  • Indoor & Limited outdoor Application
Lazerlite
Lazerlite
Lazerlite

Specifications

Sheet Type

Thickness (mm)

Width - Length (mm)

Colors

Type
Solid Sheet 1
2
3
4
6
8
10 		1220 x 30500
2100 x 30500
1220 x 2440
1220 x 3050 		Clear, Opal White, Bronze, Green, Blue, Lake Blue, Grey, Orange, Yellow, Purple Lazerlite UV
Lazerlite UV Plus

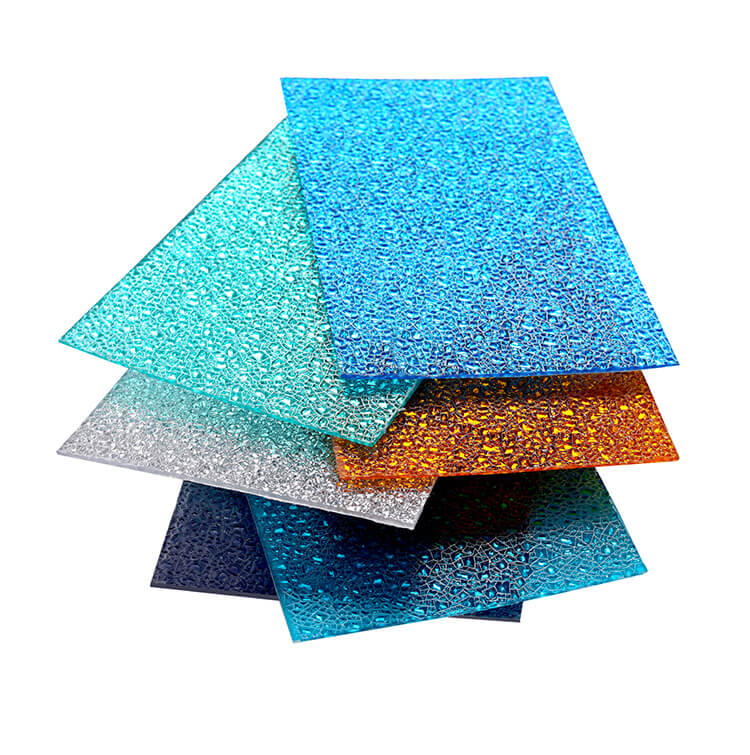

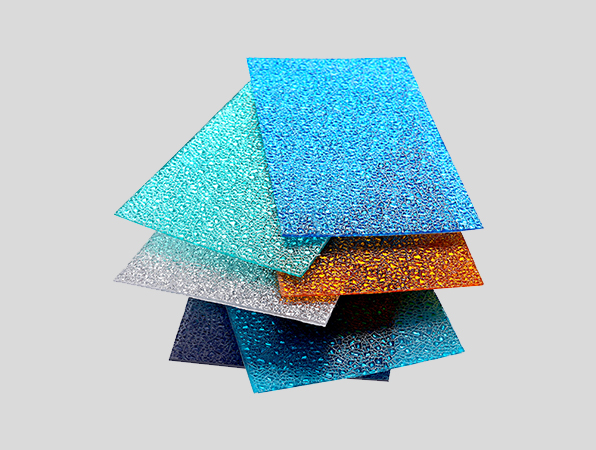

Diamond

Lazerlite-uv Polycarbonate Sheet use optical grade UV coating which is Co-extruded on top with a 50 micron thick protective UV Coating either on one or both sides.

Co-Extrusion is a process that ensures an evenly spread, evenly thick base material and UV coating.

Polycarbonate (PC) sheets lasts longer -Warranted for 5 years without discoloration and a minimum of 10 years without breakage

Typical Application
  • Sport venues

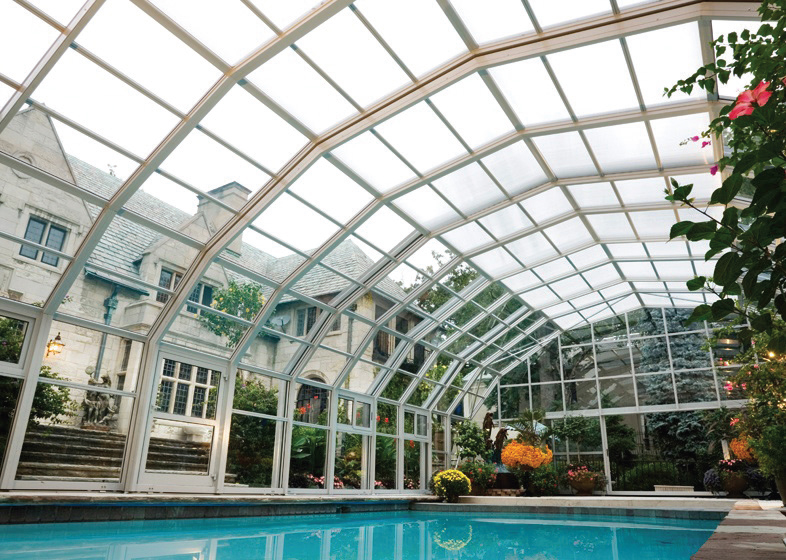

  • Skylights, day lighting system vault roofing

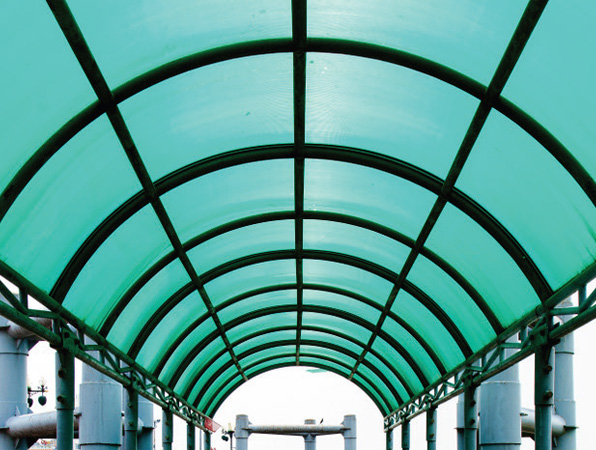

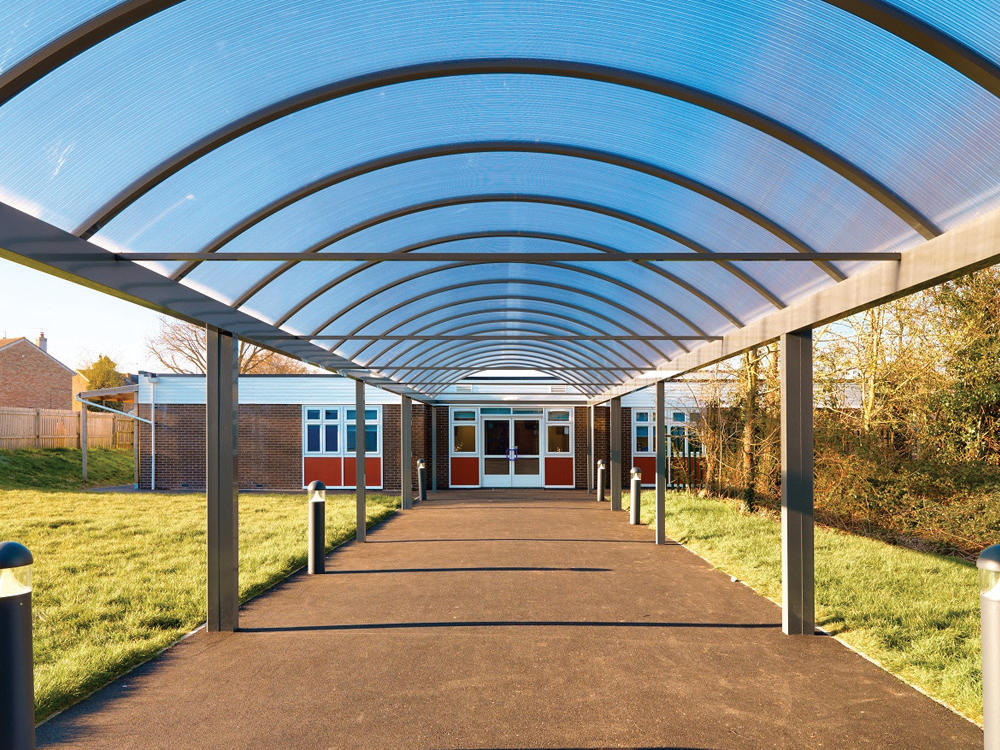

  • Architectural roofing, Covered walkways
  • Transparent acoustic barriers, Sound barriers
  • Outdoor Application with 10 years warranty
Lazerlite

Specifications

Sheet Type

Thickness (mm)

Width - Length (mm)

Colors

Type
Solid Sheet 1
2
3
4
6
8
10 		1220 x 30500
2100 x 30500
1220 x 2440
1220 x 3050 		Clear, Opal White, Bronze, Green, Blue, Lake Blue, Grey, Orange, Yellow, Purple Lazerlite UV
Lazerlite UV Plus

Embossed

Lazerlite-uv Polycarbonate Sheet use optical grade UV coating which is Co-extruded on top with a 50 micron thick protective UV Coating either on one or both sides.

Co-Extrusion is a process that ensures an evenly spread, evenly thick base material and UV coating.

Polycarbonate (PC) sheets lasts longer -Warranted for 5 years without discoloration and a minimum of 10 years without breakage

Typical Application
  • Sport venues
  • Skylights, day lighting system vault roofing
  • Architectural roofing, Covered walkways
  • Transparent acoustic barriers, Sound barriers
  • Outdoor Application with 10 years warranty

Specifications

Sheet Type

Thickness (mm)

Width - Length (mm)

Colors

Type
Solid Sheet 1
2
3
4
6
8
10 		1220 x 30500
2100 x 30500
1220 x 2440
1220 x 3050 		Clear, Opal White, Bronze, Green, Blue, Lake Blue, Grey, Orange, Yellow, Purple Lazerlite UV
Lazerlite UV Plus

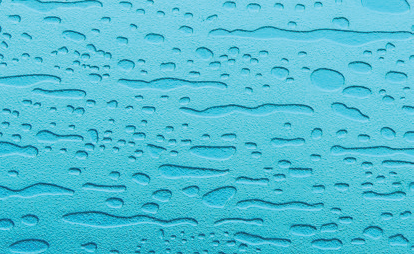

Rain Drop

Lazerlite-uv Polycarbonate Sheet use optical grade UV coating which is Co-extruded on top with a 50 micron thick protective UV Coating either on one or both sides.

Co-Extrusion is a process that ensures an evenly spread, evenly thick base material and UV coating.

Polycarbonate (PC) sheets lasts longer -Warranted for 5 years without discoloration and a minimum of 10 years without breakage

Typical Application
  • Sport venues
  • Skylights, day lighting system vault roofing
  • Architectural roofing, Covered walkways
  • Transparent acoustic barriers, Sound barriers
  • Outdoor Application with 10 years warranty

Specifications

Sheet Type

Thickness (mm)

Width - Length (mm)

Colors

Type
Solid Sheet 1
2
3
4
6
8
10 		1220 x 30500
2100 x 30500
1220 x 2440
1220 x 3050 		Clear, Opal White, Bronze, Green, Blue, Lake Blue, Grey, Orange, Yellow, Purple Lazerlite UV
Lazerlite UV Plus

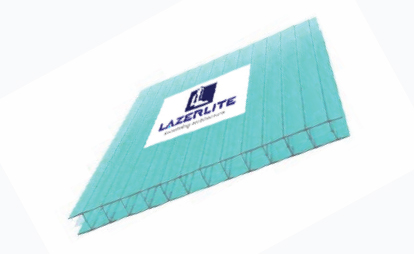

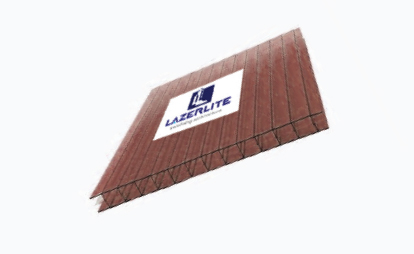

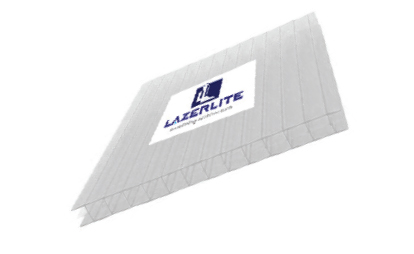

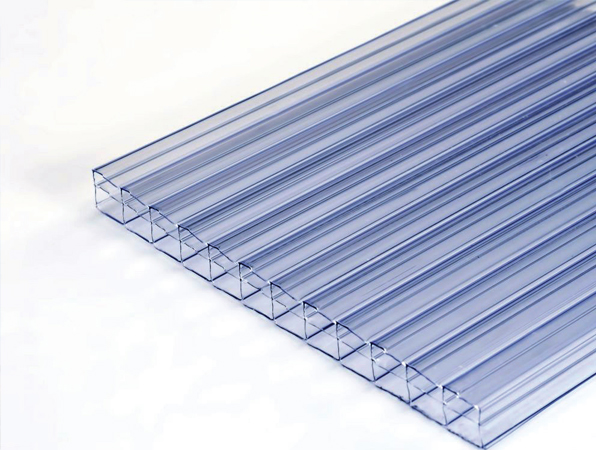

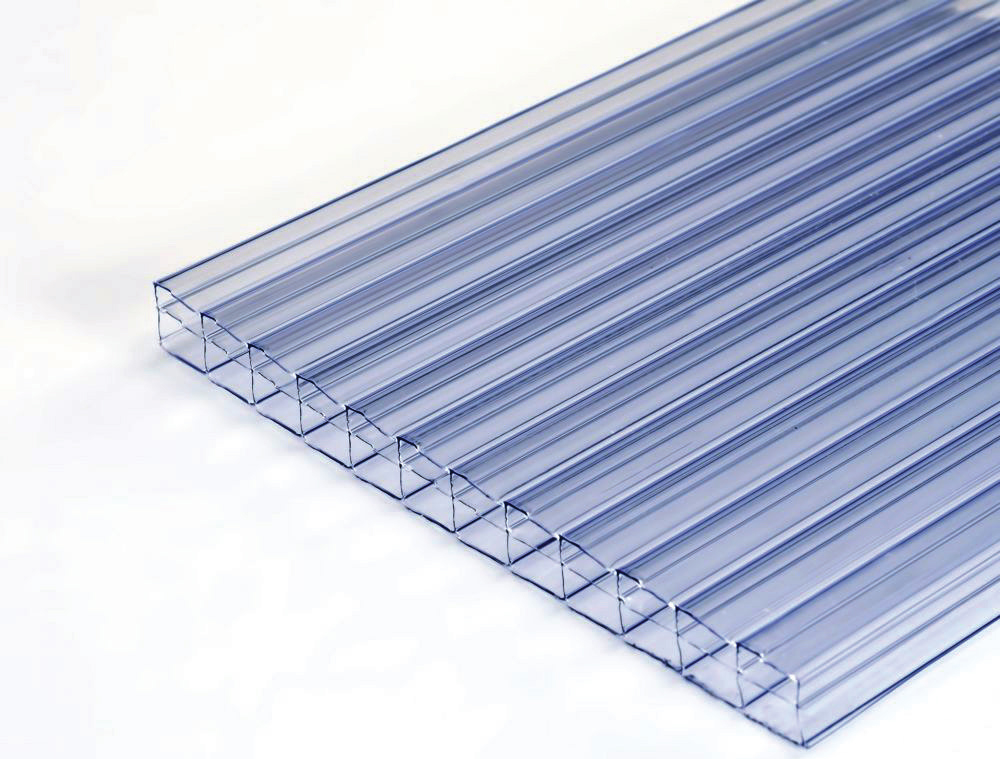

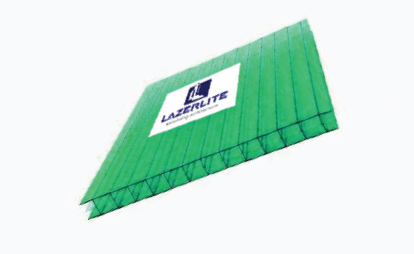

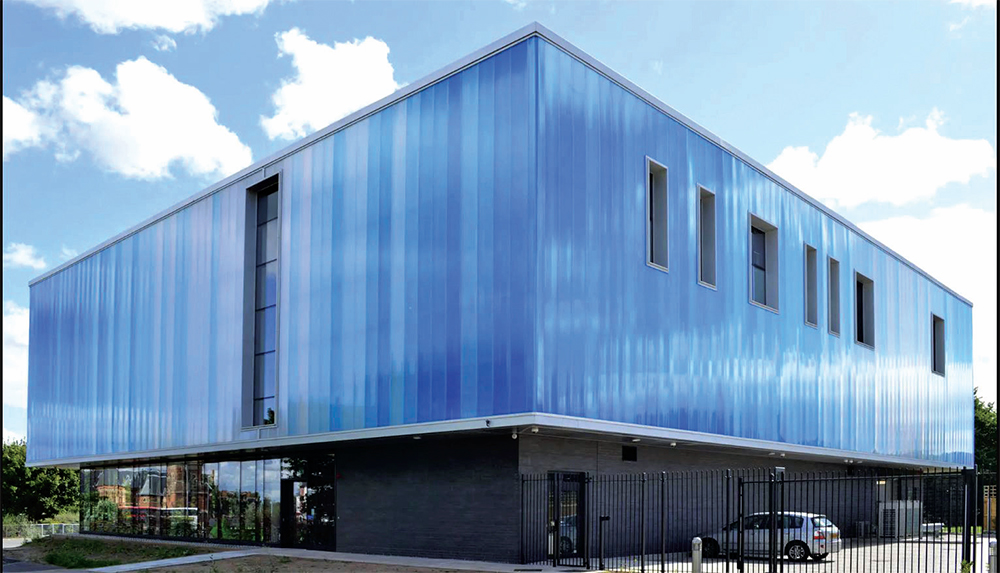

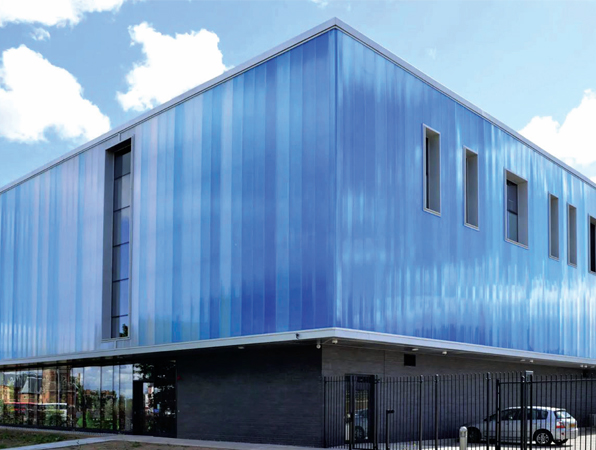

MULTIWALL

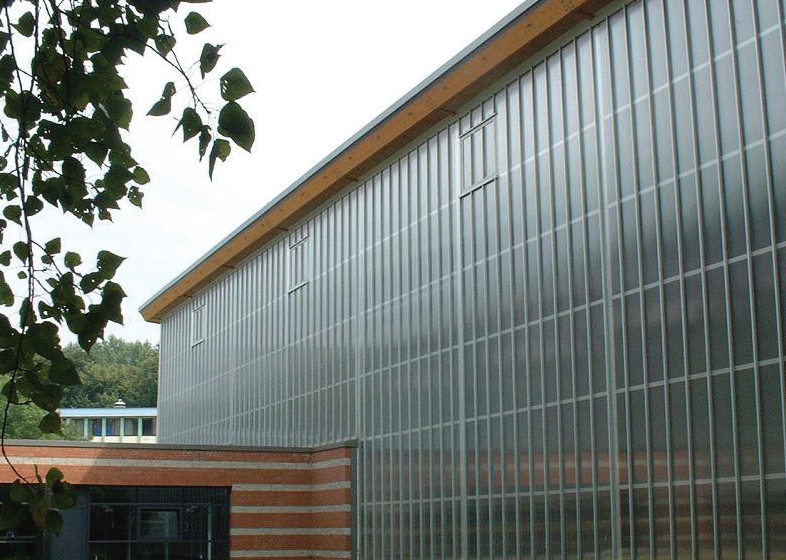

Multiwall or twin-wall polycarbonate sheet combines high light transmission, thermal insulation and weather resistance. Easy to install, lightweight and impact resistant, it is manufactured with a UV protected layer which is fused homogenously with the sheet metal.

The UV protected layer which imparts protection against weathering for 10 years is installed facing upwards/outwards. This sheet is ideally used as a load-free panel. In case of other load bearing structures, it is advisable to use sheets of greater thicknesses.

Ultralite® polycarbonate twin wall polycarbonate sheet is a basic type with light weight, you can also call it double wall polycarbonate panels. Ultralite® twin wall polycarbonate panels have another feature, UV resistant of two sides which greatly help to extend service life.

Lazerlite
Lazerlite

Specifications

MW PC Sheet Profile

Thickness (mm)

Width - Length (mm)

Colors

2 Wall - Rectangular

4

1220 x 11800
2100 x 11800

Clear, Opal, Bronze, Green, Blue, Metallic Grey

2 Wall - Rectangular

6

2 Wall - Rectangular

8

2 Wall - Rectangular

10

3 Wall - Rectangular

16

3 Wall - Rectangular

20

4 Wall - Rectangular

8

4 Wall - Rectangular

10

5 Wall - Rectangular

25

5 Wall - Rectangular

32

5 Wall - Rectangular

40

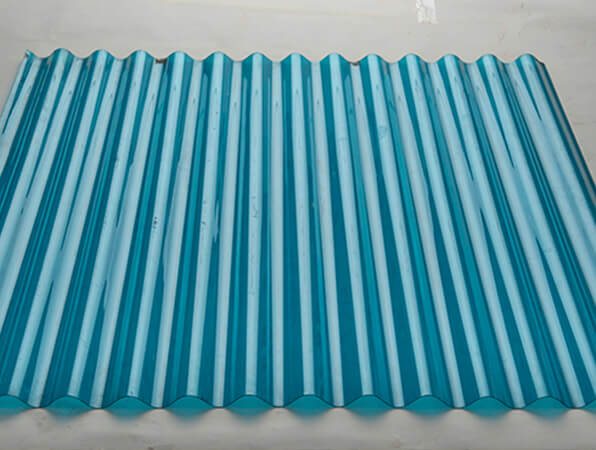

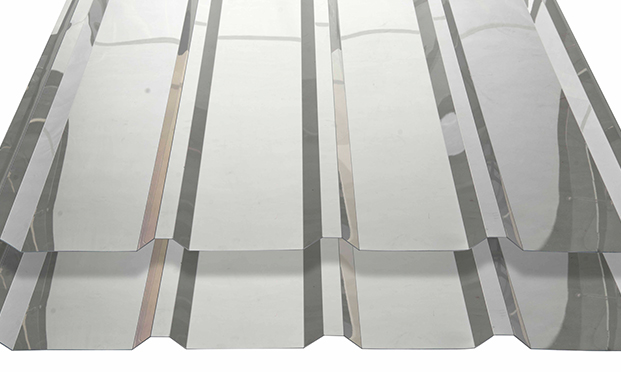

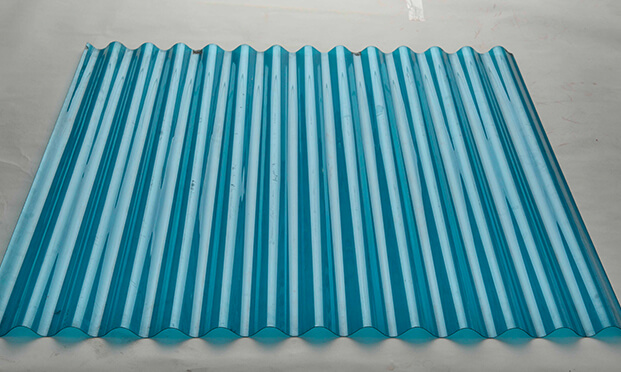

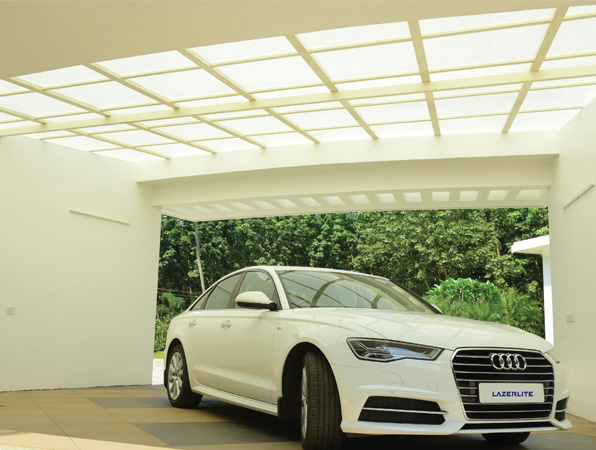

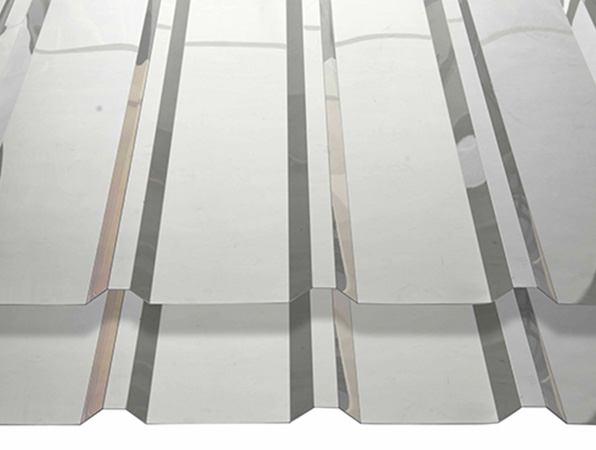

CORRUGATION SHEET

Lazerlite Polycarbonate corrugated sheet combines polycarbonate compact structure and polycarbonate embossed texture. It’s thin and strong, Corrugated PC sheet structure enhances the impact resistance of PC sheet.

Features
  • Cover larger surfaces without doing laps, more fixable for installation, Anti-static function.
  • Easy to install.
  • Self cleaning.
  • Save space in container, easy for domestic transportation.
  • Bending radium is much smaller than hollow sheet.
Lazerlite
Lazerlite
Lazerlite

Specifications

MW PC Sheet Profile

Thickness (mm)

Width - Length (mm)

Colors

2 Wall - Rectangular

4

1220 x 11800
2100 x 11800

Clear, Opal, Bronze, Green, Blue, Metallic Grey

2 Wall - Rectangular

6

2 Wall - Rectangular

8

2 Wall - Rectangular

10

3 Wall - Rectangular

16

3 Wall - Rectangular

20

4 Wall - Rectangular

8

4 Wall - Rectangular

10

5 Wall - Rectangular

25

5 Wall - Rectangular

32

5 Wall - Rectangular

40
Lazerlite

Available Colors

Solid

  • Lazerlite

    Clear

  • Lazerlite

    Blue

  • Lazerlite

    Lake Blue

  • Lazerlite

    Brown

  • Lazerlite

    Green

  • Lazerlite

    Grey

  • Lazerlite

    Opal White

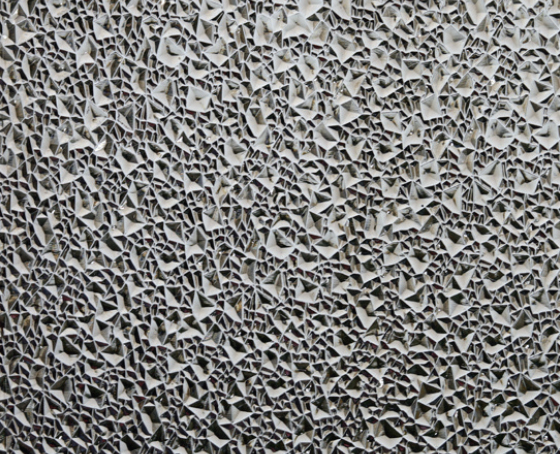

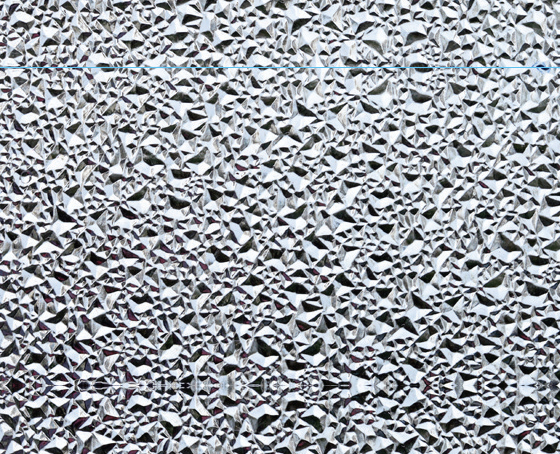

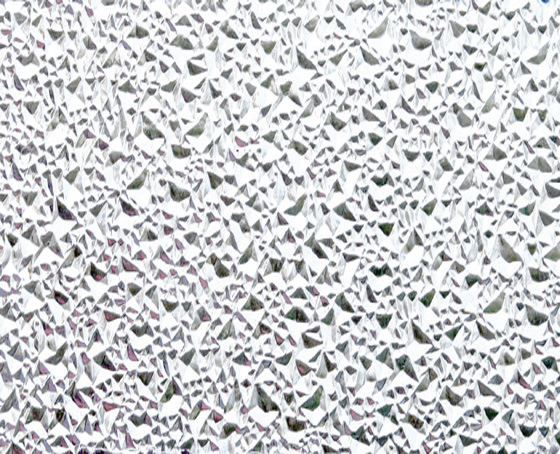

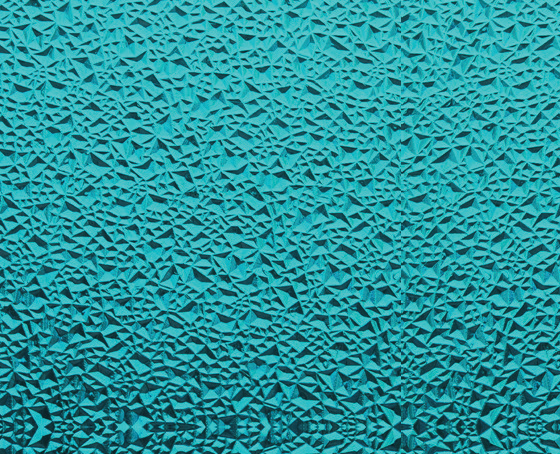

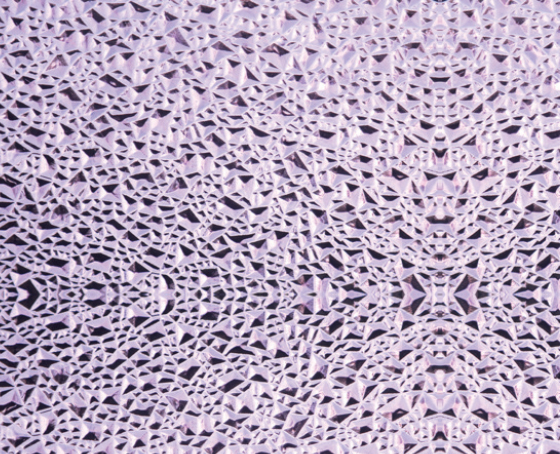

DIAMOND

  • Lazerlite

    Clear

  • Lazerlite

    Brown

  • Lazerlite

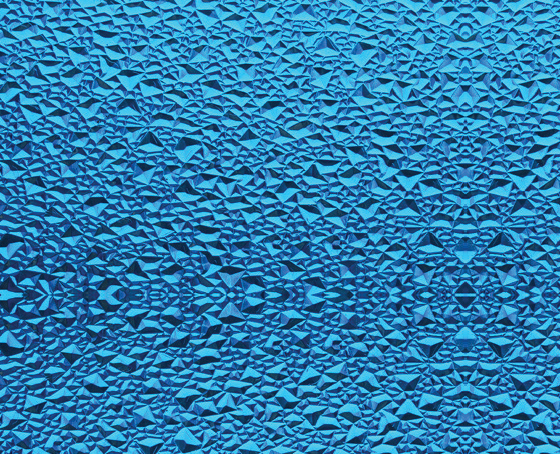

    Blue

  • Lazerlite

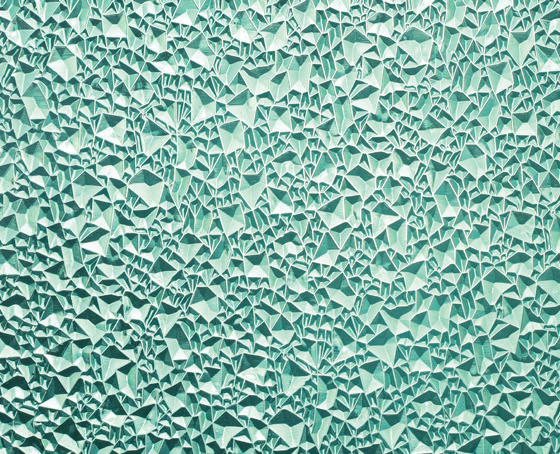

    Green

  • Lazerlite

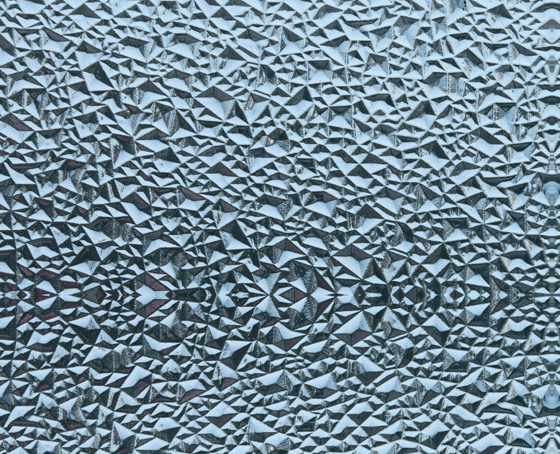

    Grey

  • Lazerlite

    Lake Blue

  • Lazerlite

    Orange

  • Lazerlite

    Purple

  • Lazerlite

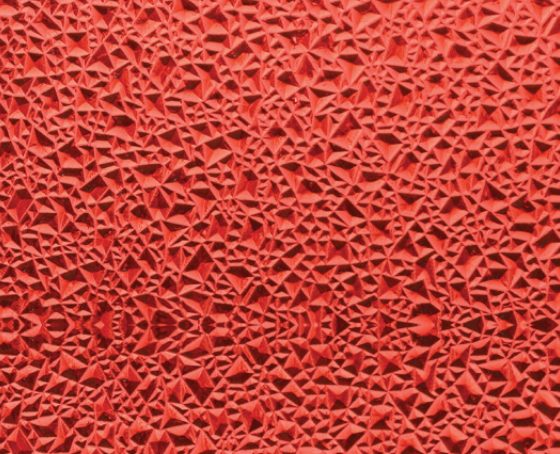

    Red

  • Lazerlite

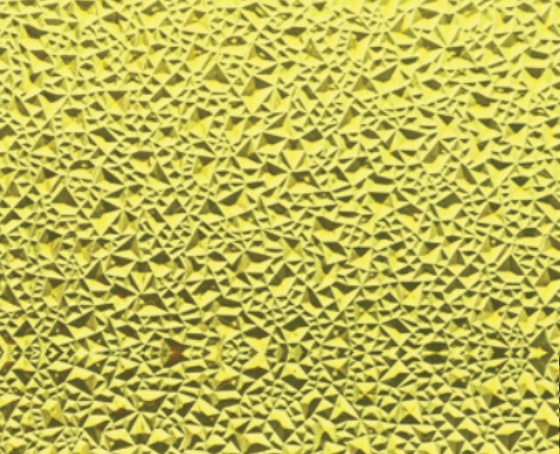

    Yellow

  • Lazerlite

    Opal White

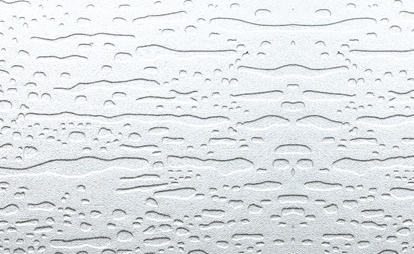

RAIN DROPS

  • Lazerlite

    Blue

  • Lazerlite

    Brown

  • Lazerlite

    Clear

  • Lazerlite

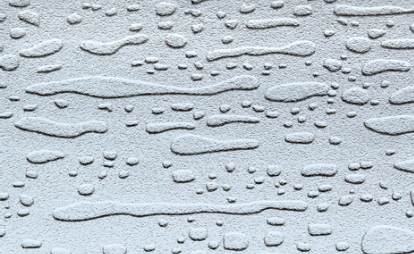

    Grey

  • Lazerlite

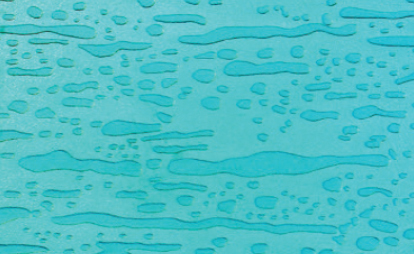

    Lake Blue

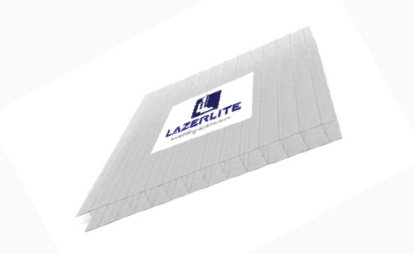

MULTI WALL

  • Lazerlite

    Clear

  • Lazerlite

    Bronze

  • Lazerlite

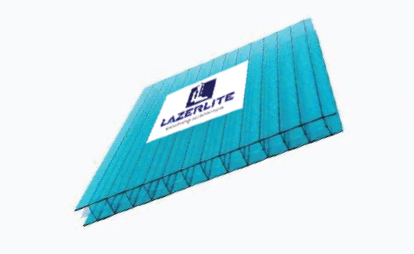

    Blue

  • Lazerlite

    Green

  • Lazerlite

    Opal White

  • Lazerlite

    Lake Blue

  • Lazerlite

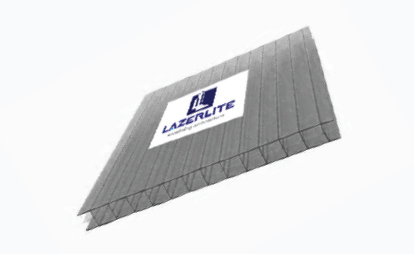

    Silver Grey

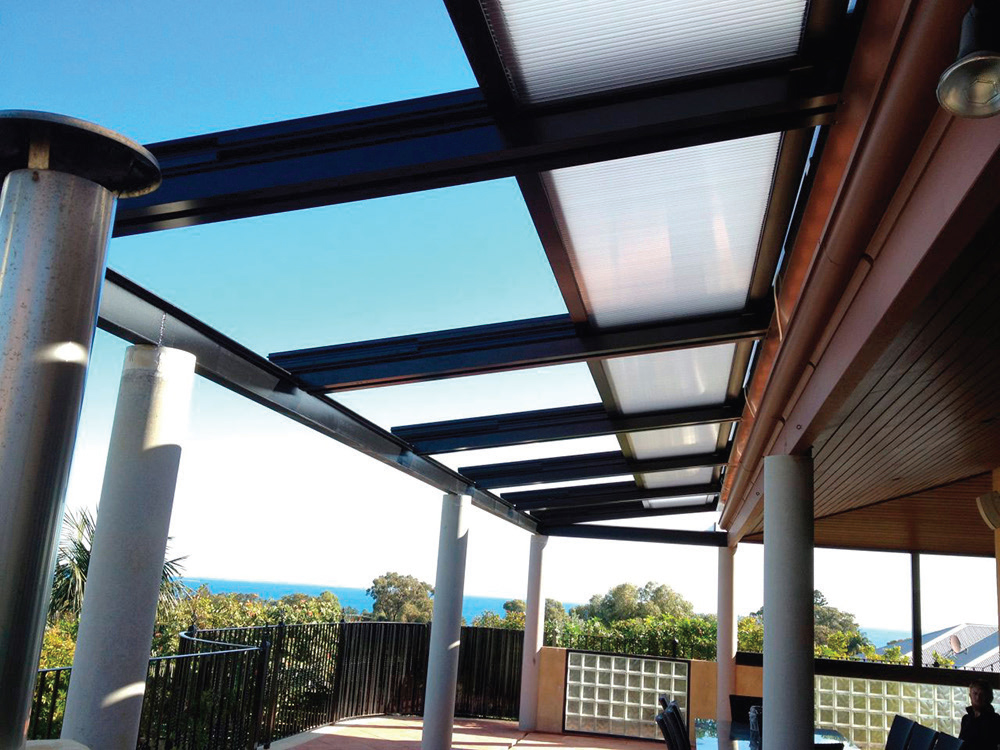

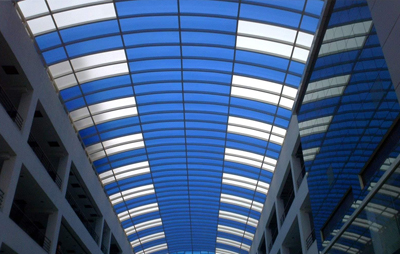

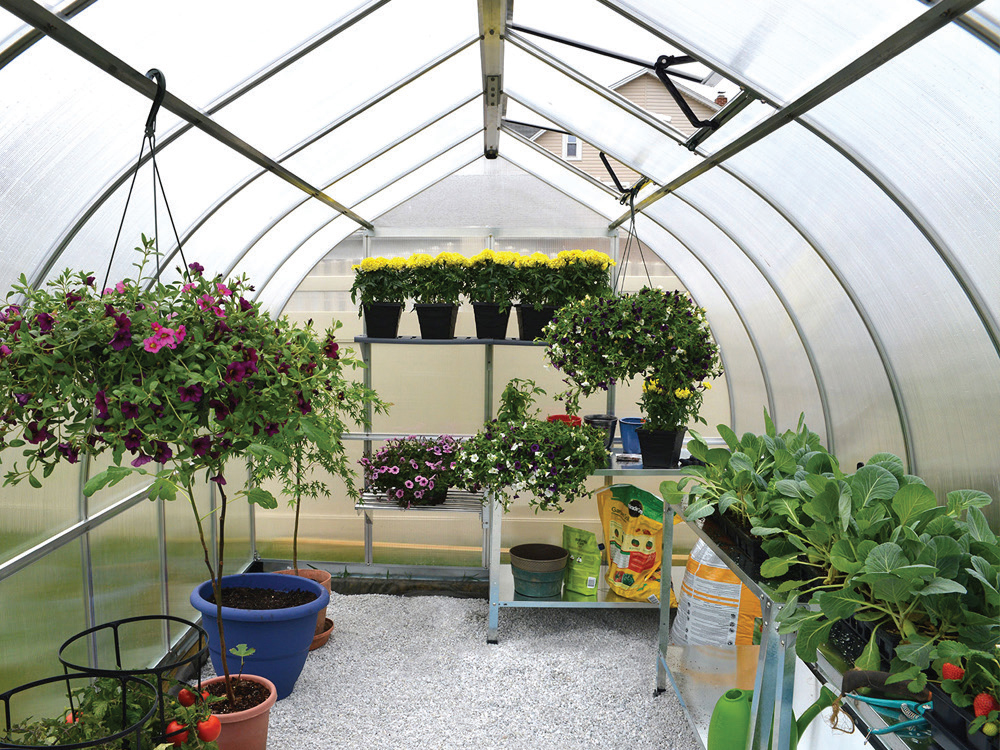

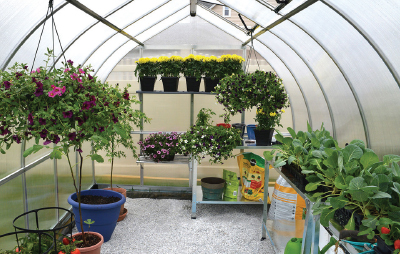

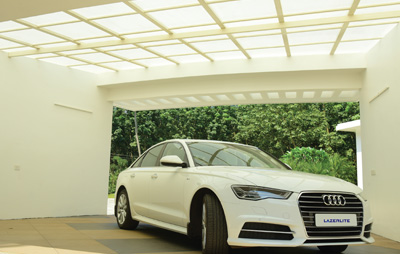

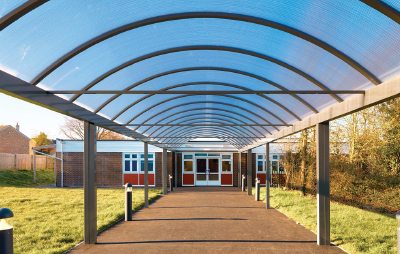

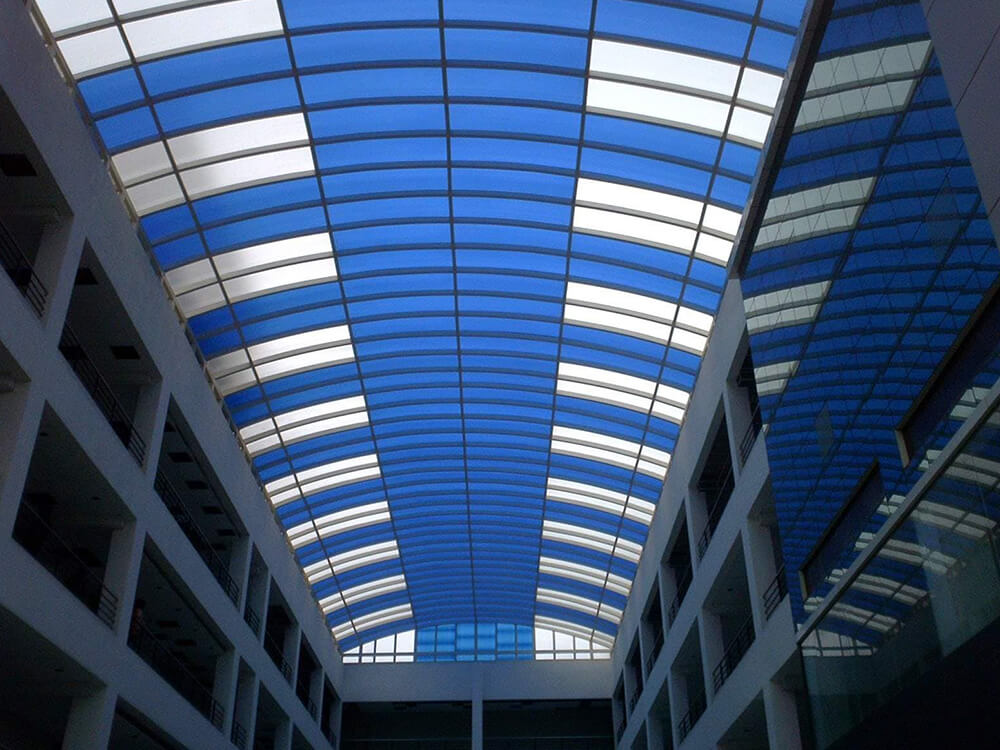

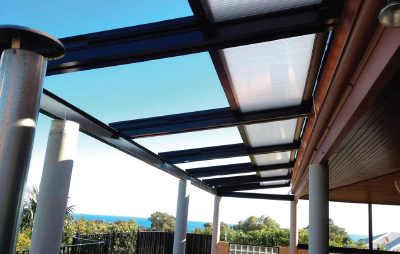

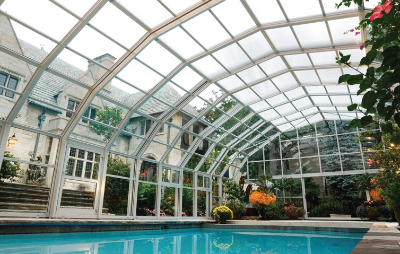

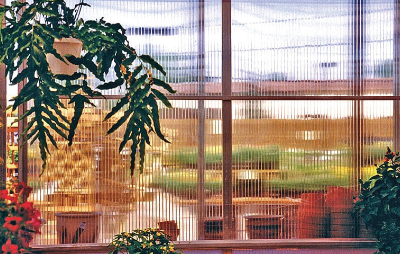

Usage

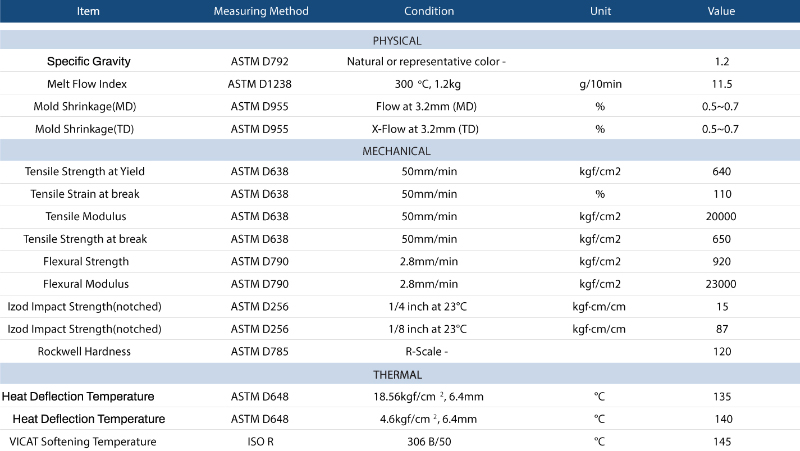

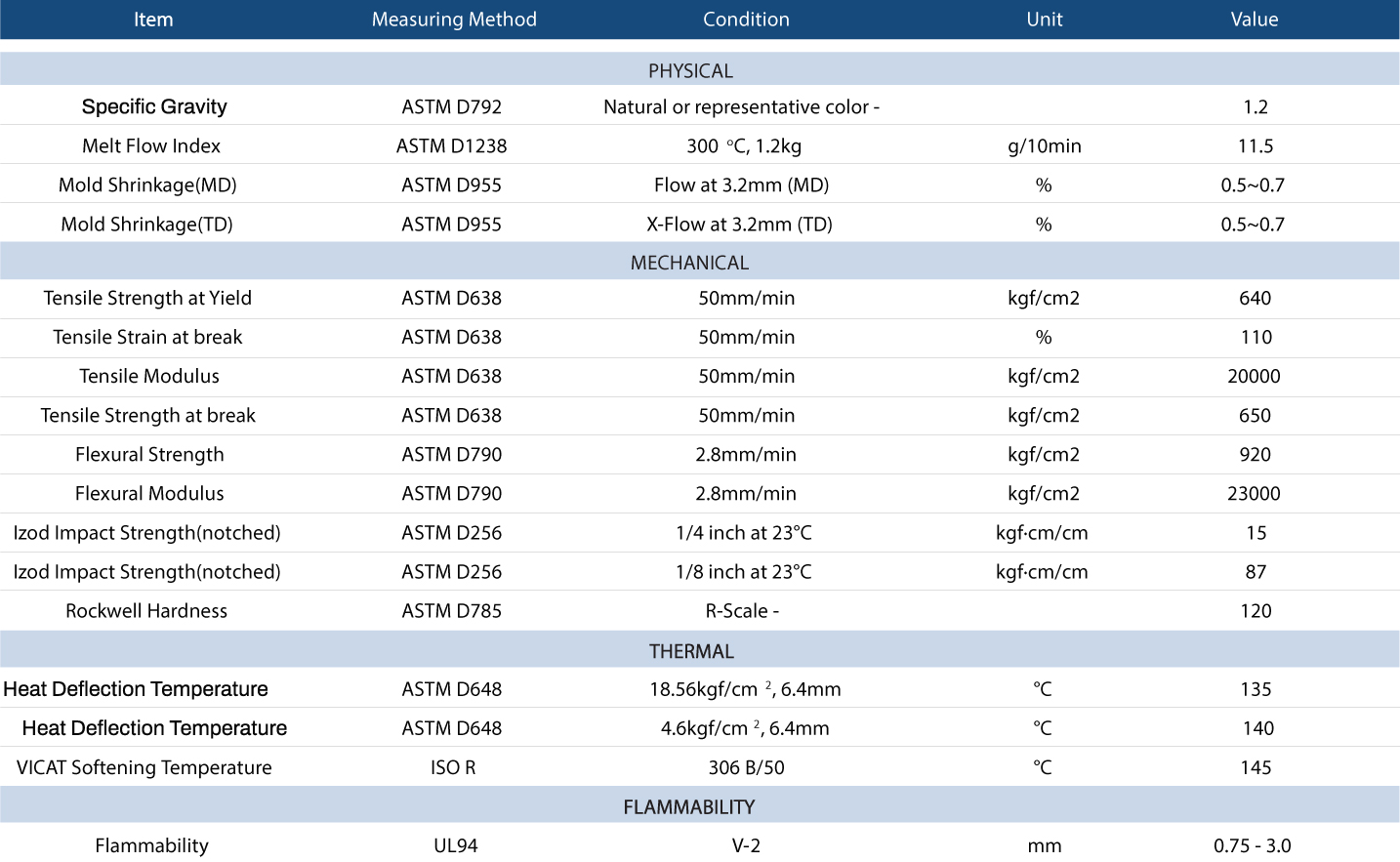

  • Property Advanced Material Standards

    Lazerlite

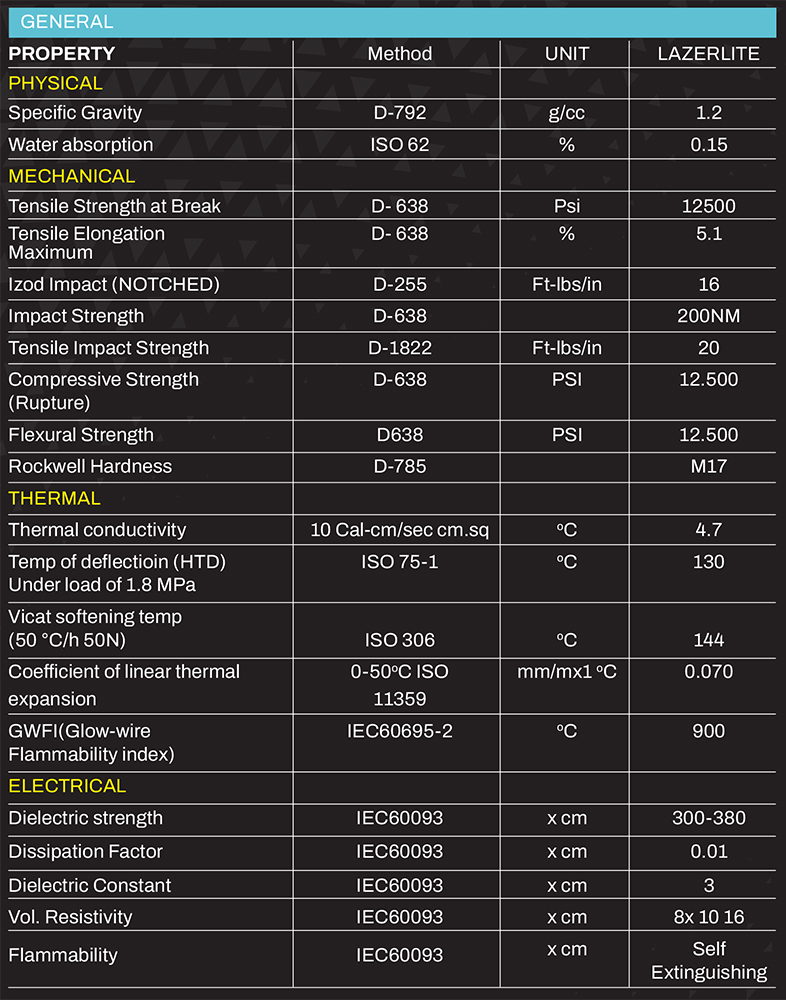

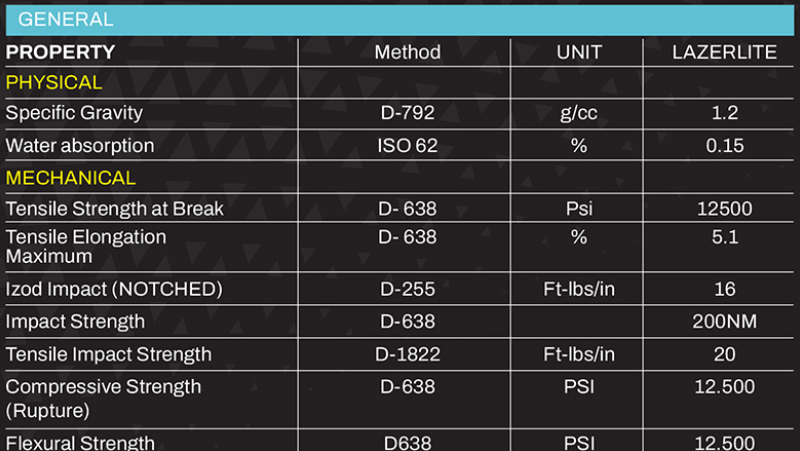

  • TECHNICAL SPECIFICATIONS

    Lazerlite

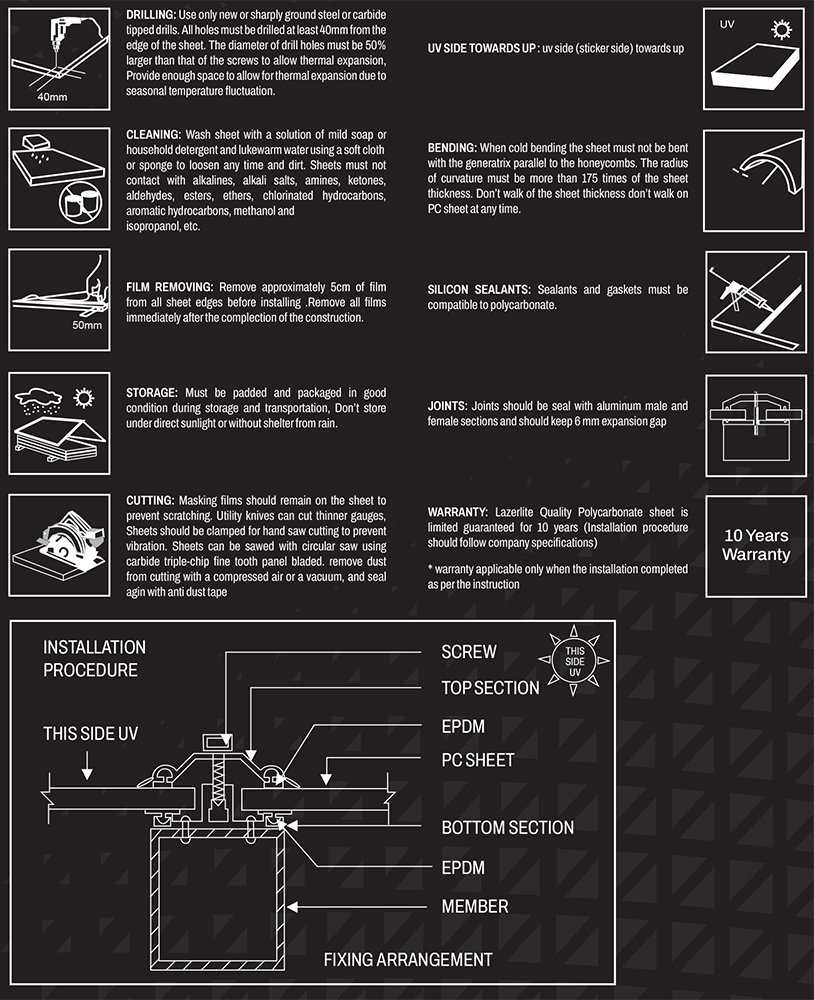

Installation manual with video

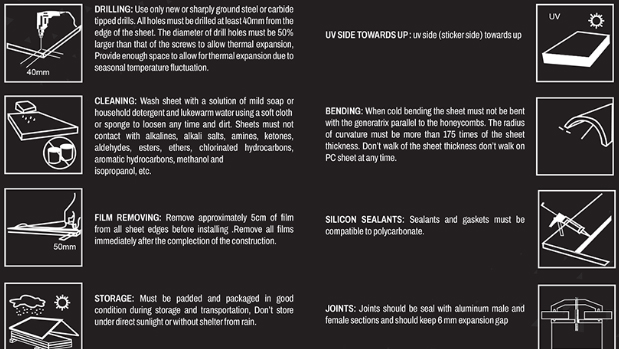

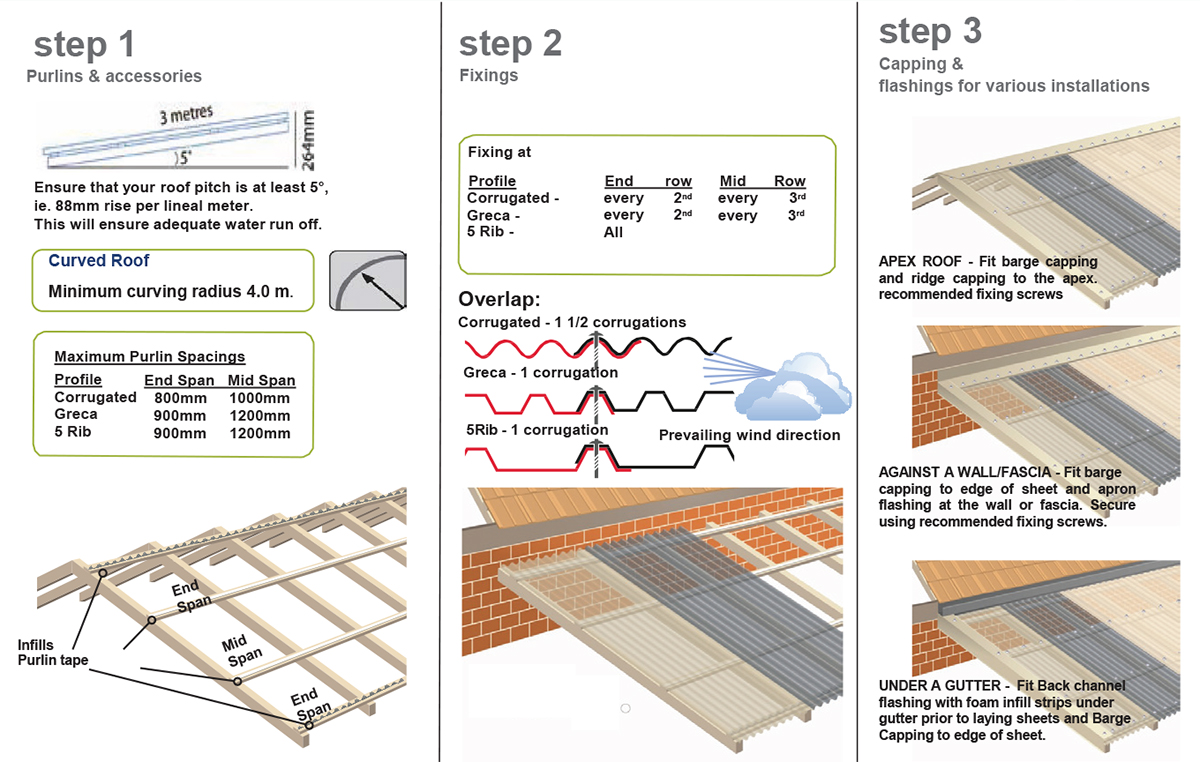

Installation Guide

Lazerlite

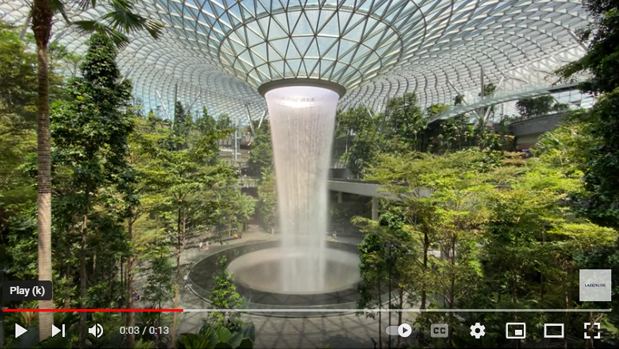

Installation Video

Lazerlite
  • Important Notes

    Use only LAZAERLITE approved accessories, including EPDM rubber washers,silicones, sealing tape, closure fixtures etc. For clear SUNTUF onto wooden purlins, apply white acrylic paint, oraluminum tape, in order to prevent over-heating of the purlins.

    Lazerlite
  • Cutting Tips

    Use jigsaw or circular saw with fine tooth blades. Apply high blade speed with moderate feeding rate. Support the sheets near the cutting line. Clean the dust and cutting chips after cutting.

    Lazerlite
  • Fastening Tips

    Use adjustable electric screwdriver. The screw must be installed perpendicular to the SUNTUF sheet. Important: Do not over-tighten
